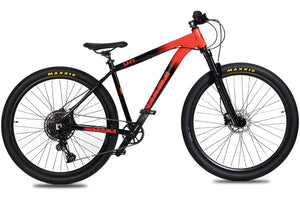

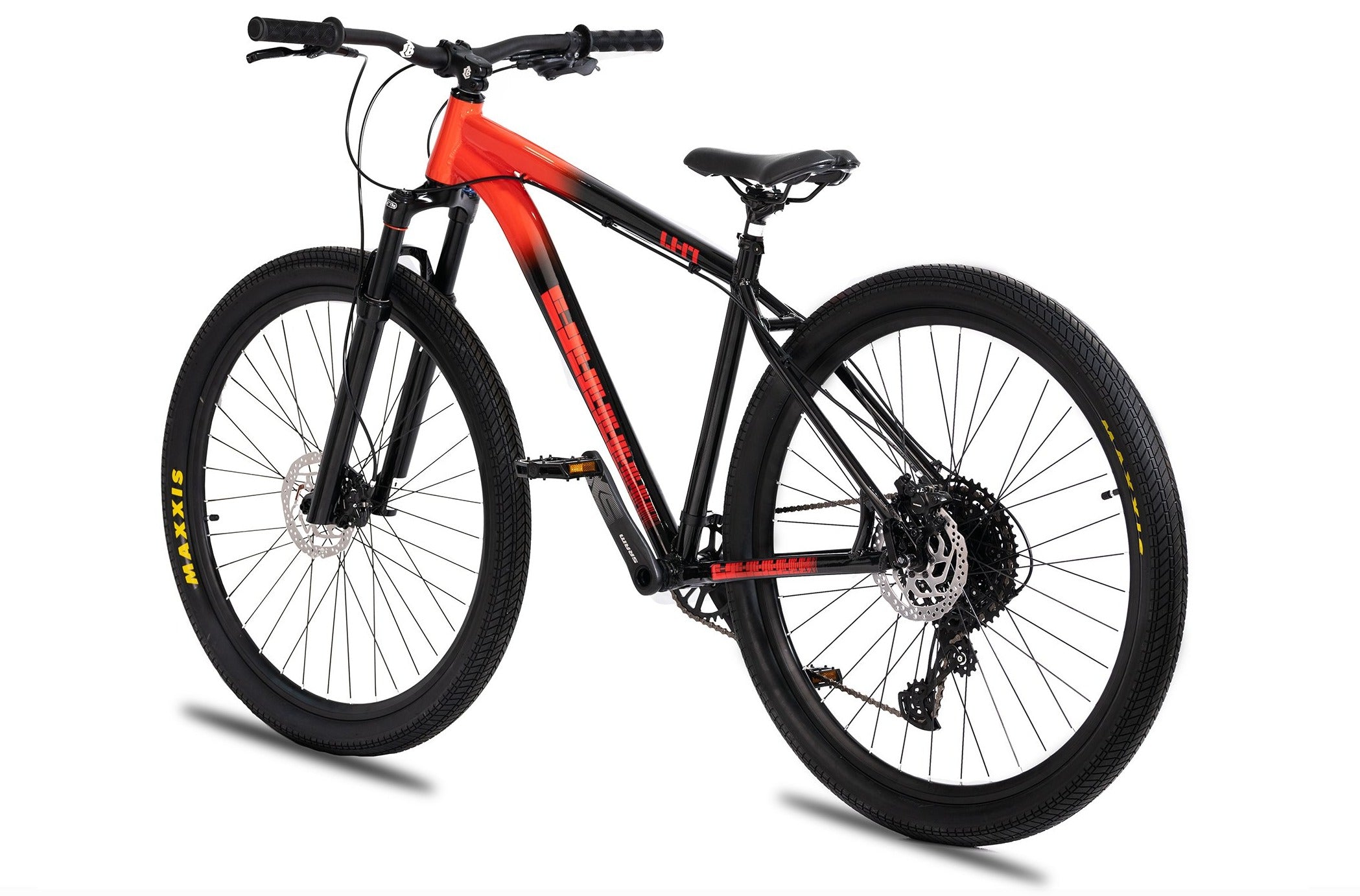

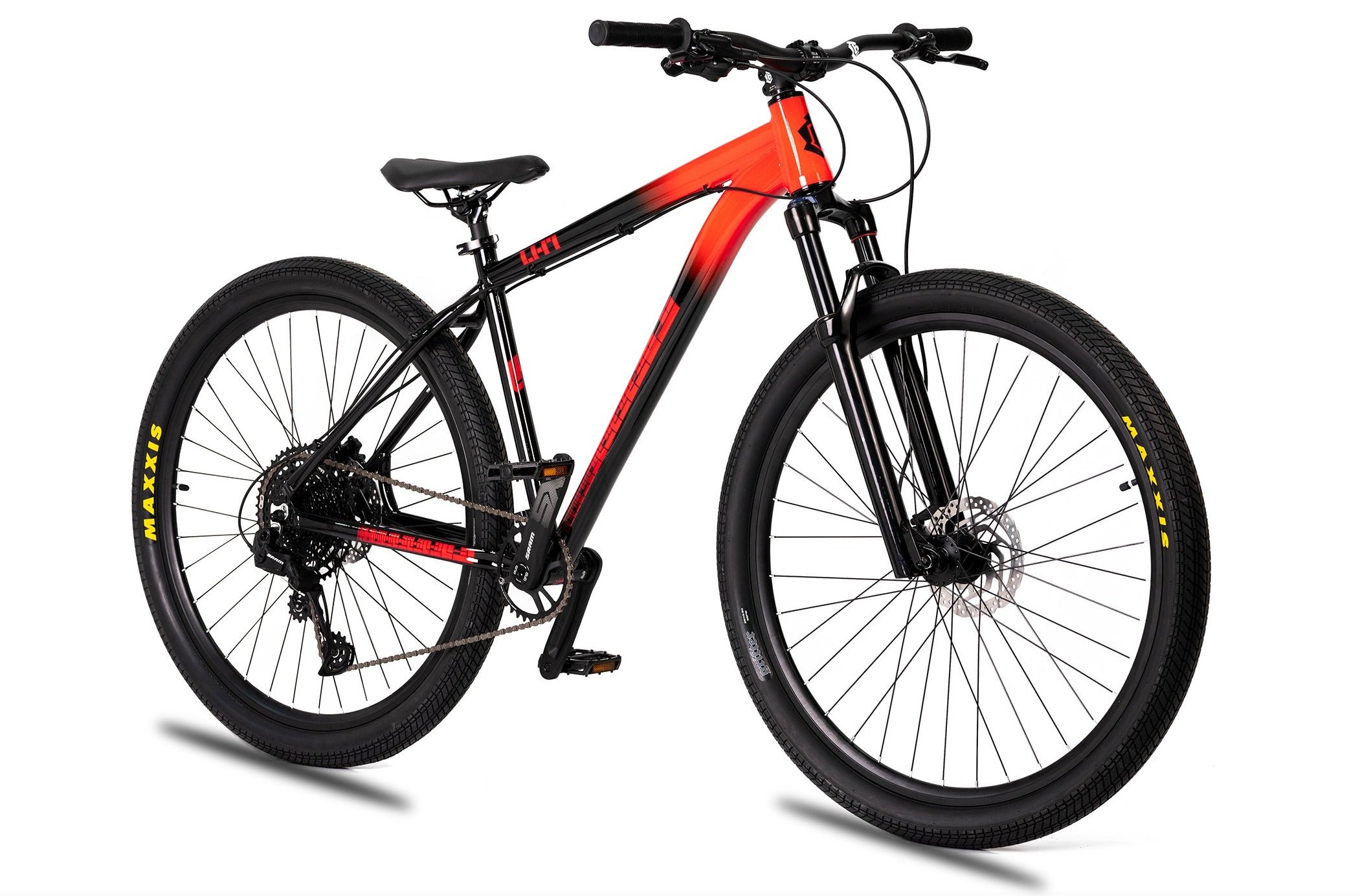

LH1 MTB

COMBO MANIAC

This bike has been made to have fun while riding, so put your feet all over it! Take it, Wheelie it, do everything you want with it. What you get is a compact 29" with a lower standover to optimise your combos.

Key feature:

  • Reinforced 19" alloy frame
  • 120mm travel forks
  • SRAM Eagle power Crank
  • Shimano Acera hydraulic brakes
  • Maxxis Grifter 2.5" tyres

Notify me when this product is available:

SPECS:

  • Designed by Collective for Little Harry.
  • Frame: 19" Alloy aluminium with a reinforced rear triangle
  • Fork: 120mm travel, Lockout, Air Fork
  • Stem: Collective Bikes custom short Alloy LA-490-8, 50mm

SHOW MORE SPECIFICATION

• Headset: Collective Custom Steelhead, 28.6X34X30mm, threadless, 2 x 5mm Black Alloy Spacers
• Handlebar: Collective Bikes Custom Alloy butted 740mm
• Grips: Collective Speed tight
• Seat Clamp: 31.8mm
• Seat Post: 27.2mm
• Brakes: Shimano Acera Hydraulic Disc Brakes Front and Rear
• Shifter: SRAM SX Eagle Trigger
• Derailleur: SRAM SX Eagle 12 Speed
• Bottom bracket: SRAM DUB Bottom Bracket
• Crank: SX Eagle Power Spline Crank Set 32T 12-speed Boost
• Chain: SRAM SX Eagle
• Cassette: SRAM SX Eagle PG-1210 Cassette 12spd
• Rims: Collective 29"" Double wall 32 hole
• Hubs: Pro 36 hole nutted fully sealed hubs with new 4 pawl cassette
• Spokes: Collective F UCP(263mmL) /R UCP(261/263mmL)
• Tires: Maxxis Torch 29er Tire Black 2.1"" Width

GEOMETRIES

• A: Top Tube (Effective) 23.35 (593.2mm)
• B: Seat Tube (c-t) 18.5 (470mm)
• C: Head Tube Angle 69 Degrees
• D: Seat Tube Angle 74 Degrees
• E: Chainstay Length 18.11 (460mm)

MORE GEOMETRIES

• F: BB Drop 2.71 (69mm)
• G: Wheelbase 44.72 (1136mm)
• H: Head Tube Length 4.72 (120mm)
• I: Stack Height 28.27 (718.1mm)
• J: Reach 22.47 (570.8mm)
• K: Standover
• L: Fork Height 20.27 (515mm)
• M: Fork Offset 1.77 (45mm)
