Stem: Collective Bikes custom short Alloy LA-490-8, 50mm

Headset: Collective Custom Steel head, 28.6X34X30mm, threadless, 2 x 5mm Black Alloy Spacers

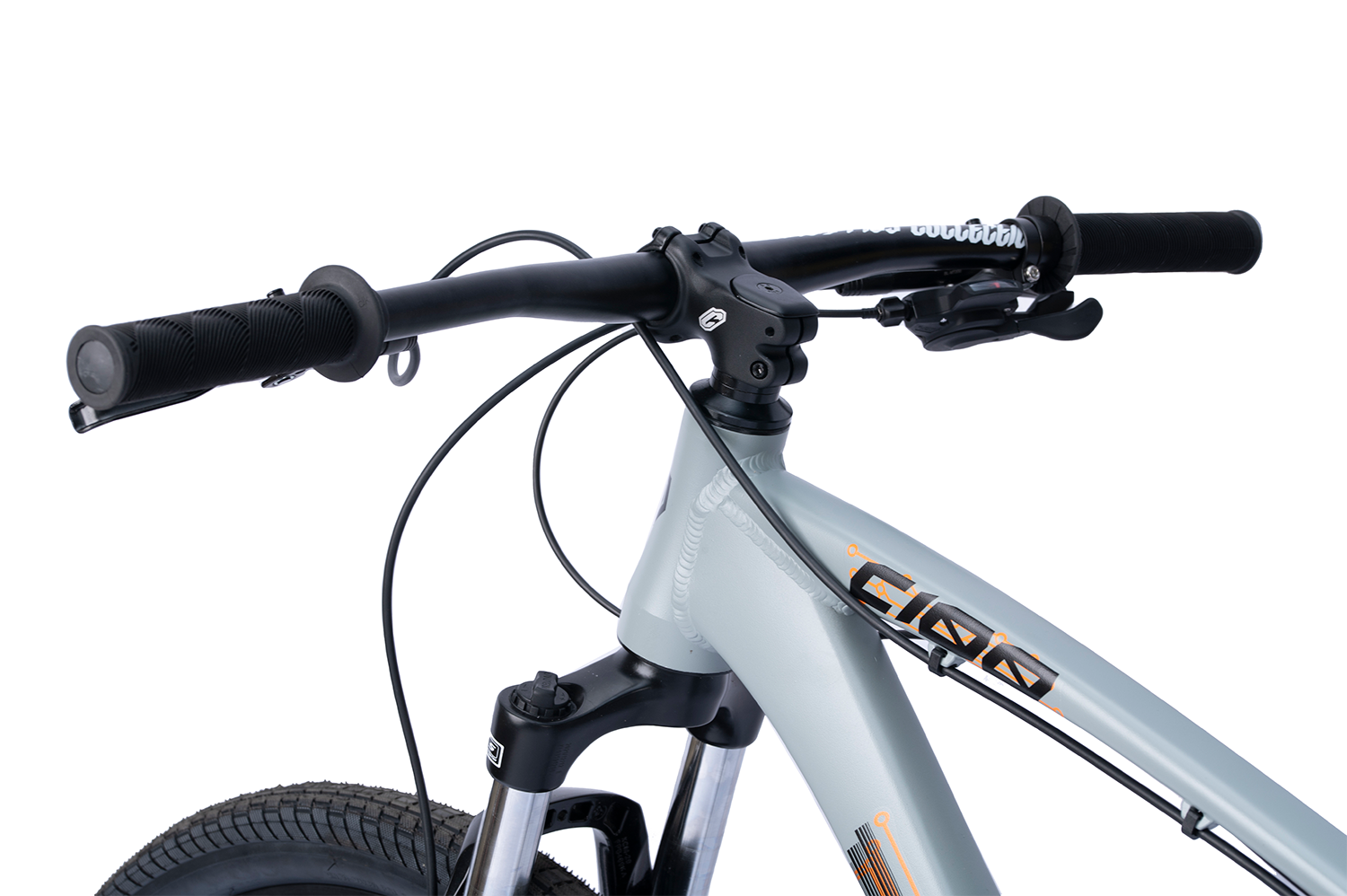

Handlebar: Collective Bikes Custom Alloy butted 740mm

Grips: Collective Speed tight

Seat Clamp: 31.8mm

Seat Post: 27.2mm

Brakes: Shimano Acera Hydraulic Disc Brakes Front and Rear

Shifter: Shimano Deore 10 Speed Trigger Shifter

Derailleur: Shimano Deore Shadow+ 10 Speed

Bottom bracket: Shimano Deore Hollowtech II Bottom Bracket

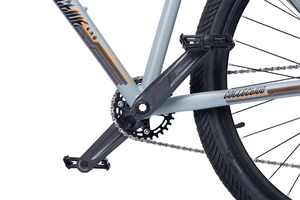

Crank: Shimano Deore 10 Speed Chainset

Chain: KMC 3/32''x1/2''x110 Links

Cassette: Shimano Tiagra HG500 10 Speed Cassette 11-34

Rims: Collective 29"" Double wall 32 hole

Hubs: Pro 36 hole nutted fully sealed hubs with new 4 pawl cassette

Spokes: Collective F UCP(263mmL) /R UCP(261/263mmL)

Tires: KENDA Kwick Nine 29er Tire Black 2.1"" Width

A: Top Tube (Effective) 24.055 (611mm)
B: Seat Tube (c-t) 17.992 (457mm)
C: Head Tube Angle 71 DEGREES
D: Seat Tube Angle 73 DEGREES
E: Chainstay Length 17.91 (455mm)

F: BB Drop 2.36 (60mm)
G: Wheelbase 43.56 (1106.6mm)
H: Head Tube Length 4.72 (120mm)
I: Stack Height 28.38 (721.1mm)
J: Reach 23.04 (585.4mm)
K: Standover 30.70 (780mm)
L: Fork Height 19.5 (497mm)
M: Fork Offset 1.49 (38mm)
